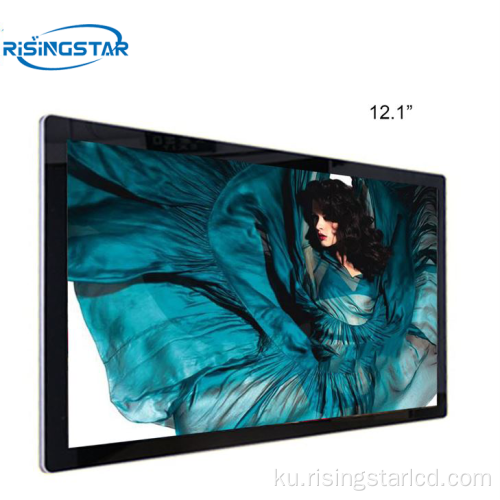

12.1 inch LCD ronahiya tîrêja tîrêjê ya tîrêjê bi 600 nîgaran panelên lcd-ê bixwîne.
Ji tavê, struktura patentê ditirse, sêwirana ultra-nerm, teknolojiya kalîteya reş.
Ji tavê ditirse ku bi zelalî nîşan bide.
NTSC 72% Color Gamut Coverage, rengê wêneyê super dewlemend sererast bikin.
Crystal ya germahiya bilind bi kalîteya pêşeng a berbiçav di şert û mercên hewayê yên giran de piştrast dike.
Heman modelên size: g121s1-l02, g121xce-l02, g121xce-l01, g121x1-l03, g121x1-l02.
| brand | Innolux | Model name | G121ICE-L01 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 WXGA 124PPI | Pixel configuration | RGB vertical bar |
| Display size | 261.12×163.2mm(H×V) | Surface treatment | Fog surface, Hard coating (3H) |
| Open zone | 264.12×166.2mm(H×V) | Contrast Ratio | 1000:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 600 cd/m² (Typ.)or customized | Outline dimension | 278×184×11 (H×V×D) mm |
| Viewing Angle | 88/88/88/88(Typ.)(CR≥10) |
|
|
| Signal interface | 30 pins LVDS (1 ch, 6/8-bit) ,terminal |
|
|
| work environment | Storage temperature: -30 ~ 85 °C Working temperature: -30 ~ 80 °C |
|
|
Tagsên Hot: 12.1 "Innolux G121ice-L01 TFT LCD Module, Chinaîn, Factory, Cheap, Bihar, Sulight LCD Display Nits LCD , Panel LCD, Modela LCD, Display Brightness High.
